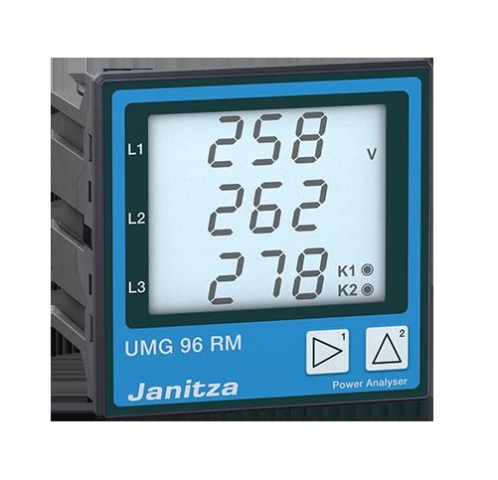

Janitza Electronic Power Analyser 90-277VAC, 90-250VDC UMG 96RM-PN #5222090 NEW

Heiz24 article number: SP1104731
EAN: 4251861100095
Category: 90-277VAC, 90-250VDC
Manufacturers:

Item condition: New and original packaging

€ 884,44

incl. 19% VAT , Free shipping to DE. (Standard)

5 Pcs. In stock
Estimated delivery time (may vary): 1 - 4 Workdays (DE - foreign countries differ)

Pcs.

Description
Reviews

Energy measuring device UMG 96RM-PN with Profinet, (UL)Supply voltage 90V..277V (50/60Hz)
90V..250V DC, 300V CATIIISvoltage measurement, measurement category 300V CATIII,3 voltage measurement inputs (L-N: 20V-300V
L-L: 34V- 520V
45Hz-65Hz),3+1 current measurement inputs 0..5A, response current 5mA,Measurement in three-phase 4-wire systems with earthed neutral conductor up to max. 277V / 480V,Measurement in earthed three-phase 3-wire systems up to max. 480V,Measurement in earthed single-phase 3-wire systems up to max. 220V-440V,Measurement in earthed single-phase 2-wire systems up to max. 220V,2 digital outputs,3 digital inputs/outputs, configurable,2 analogue inputs, optionally as temperature or residual current measurement input,Interfaces:RS 485, EthernetProtocol: Profinet, TCP/IP, Modbus RTUAccessories (included):33.03.339 Installation manual, safety instructions and &quot
Software-GridVis&quot
Quick start52.22.251 Mounting kit 08.01.505 Patch cable 2m twisted grey52.00.008 RS485 terminating resistor 120 OhmProgramming software ¿ GridVis Basic¿ download: www.janitza.de/gridvis-download.html

Power supply:	Netzbetrieb
Display:	digital
Interface:	ja
Measured value memory:	nein
Power factor:	ja
Harmonic measurement:	ja
Number of voltage input channels:	3
Number of current input channels:	4
Reactive power:	ja
Performance/Work:	ja
Phase angle (cos phi):	ja
Apparent power:	ja
Current measurement:	direkte Strommessung
Active power:	ja
Shipping weight:	0,74 kg
Item weight:	0,62 kg
Dimensions ( Length × Width × Height ):	17,00 × 18,00 × 14,00 cm
