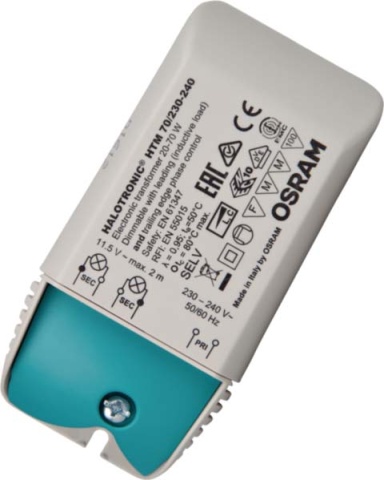

LEDVANCE Electronic Transformer HTM 70/230-240 NEW

LEDVANCE Electronic Transformer HTM 70/230-240 NEW

Heiz24 article number: SP1330504
EAN: 4050300442310
Category: Luminaires for incandescent lamps
Manufacturers:

Item condition: New and original packaging

€ 15,63

incl. 19% VAT , plus (Standard)

228 Pcs. In stock
Estimated delivery time (may vary): 1 - 4 Workdays (DE - foreign countries differ)

Pcs.

Description
Reviews

Electronic transformers for low-voltage halogen lamps. Product features: Mains frequency: 50¿60 Hz. Radio interference suppression: according to EN 55015 (A1: 2007)/CISPR 15, EN 55022. Mains current harmonics according to EN 61000-3-2. Immunity, noise immunity according to EN 61547. Safety: according to EN 61347. Short-circuit protection, overload protection, overtemperature protection: electronically reversible. Galvanic isolation between primary and secondary side. Secondary side switching between electronic transformer and lamp not permitted. Energy efficiency: = 91 % (according to ErP Regulation 2012/1194/EC). Dimmable via phase control (without HTN) and phase cut. Product advantages: Very low power loss due to high efficiency. Strain relief suitable for different cable types (HTM). Suitable for space-critical installation due to compact functional design. Extremely compact transformer for very space-critical installation conditions (HTN). Lamp-friendly operation in the entire partial load range for long lamp service life. Areas of application: Effect and accent lighting. Living room. Object lighting. Conference rooms. Restaurants. Recessed and surface-mounted furniture luminaires. Shop lighting. Event rooms.

PDF

Montageanleitung

Montageanleitung

Colour:	grau
Protection class (IP):	IP20
Height:	33 mm
Enclosure material:	Kunststoff
Without dimming function:	nein
Dimming DALI:	nein
Dimming DMX:	nein
Dimming Mains voltage modulation:	nein
Dimming phase section:	Ja
Dimming phase angle control:	Ja
Transformer type:	elektronischer Trafo
Safety transformer:	Ja
Connection type secondary side:	Schraubanschluss
Structure:	Ja
Installation:	Ja
Short-circuit proof:	Ja
Overload protection:	Ja
Overtemperature protection:	Ja
Number of outlets (pairs):	4
Power:	20..70 W
Wide:	52 mm
Length:	108 mm
Protection class (NEMA):	1
Output voltage:	11,2 V
Input voltage:	230..240 V
IFTTT support available:	ja
Compatible with Amazon Alexa:	nein
Compatible with Apple HomeKit:	nein
Compatible with Google Assistant:	nein
Dimming 1-10 V:	nein
Dimming DSI:	nein
Dimming manufacturer-specific:	nein
Dimming with push-button:	nein
Dimming Touch and Dim:	nein
With secondary circuit breaker:	ja
Dimming 0-10 V:	nein
Dimming GPRS:	nein
Dimming LineSwitch:	nein
Dimming potentiometer (device-integrated):	nein
Dimming programmable:	nein
Dimming RF:	nein
Dimming Sine Wave Reduction:	nein
Dimming Zigbee:	nein
Shipping weight:	0,13 kg
Item weight:	0,11 kg
Leistung:	20..70 W
